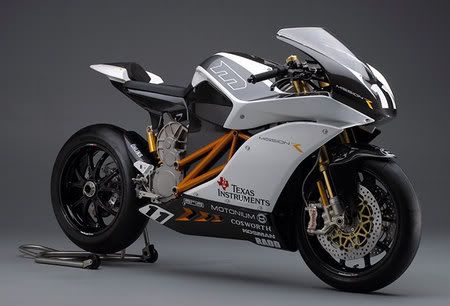

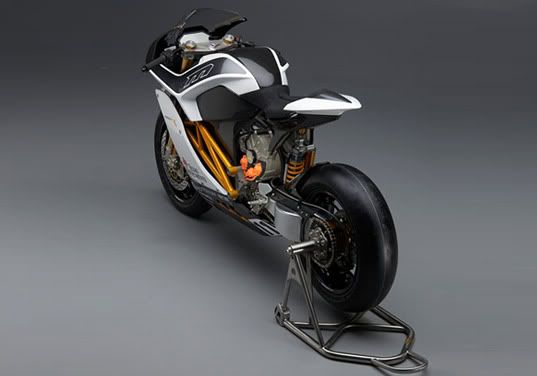

Mission motors launched their latest electric superbike in Long Beach International Motorcycle Show. It will take part in the 2011 TTXGP Championship (Time Trial Xtreme Grand Prix). It boasts of a 141 horsepower which comes from a 14.4 kWh capacity battery and motor itself has a three phase liquid cooled AC Induction design. Peak torque is about 115 lb-ft and transmission is through a single gear and a final chain drive. The top speed of the bike is more than 160mph! .
The frame uses the AC motor as a fully stressed member and battery is a semi stressed member. Braking system is taken care by Brembo and all the parts are sourced from top companies. The bike is track ready with all the aerodynamic, cornering aspects of the bike fully looked after.
Mission R Specifications
Motor: Liquid-cooled 3-phase AC induction
Horsepower (claimed): 141 hp
Torque (claimed): 115 ft-lb at 0 – 6400 rpm
Top Speed: 160+ mph
Battery: MissionEVT battery modules with integrated Battery Management System, carbon fiber casing with dielectric liner, swappable architecture and 14.4 kWh total energy storage
Power Control: MissionEVT 100kW controller with integrated Vehicle Management System, featuring adjustable throttle mapping, regenerative braking and WiFi & 3G data connectivity
Transmission: Single speed, gear-driven primary reduction
Chassis: RADD-designed Quad-Element Frame, billet aluminum and chrome-moly, with power-Unit as fully-stressed member and battery box as semi-stressed member
Front Suspension: Ohlins FGR-000 TTX25 gas-charged fork, adjustable for preload, ride height, high- and low-speed compression and rebound
Rear Suspension: single-sided billet aluminum swingarm, Ohlins TTX36 shock and progressive linkage system, adjustable for preload, ride height, high- and low-speed compression and rebound
Front Wheel: 17 x 3.5 10-spoke Marchesini forged magnesium
Rear Wheel: 17 X 6 10-spoke Marchesini forged magnesium
Front Brake: Brembo 320mm rotors, Brembo 2-piece billet 4-piston 30/34mm differential bore radial-mount calipers
Rear Brake: 245mm rotor, Brembo HPK 2-piston 34mm caliper
